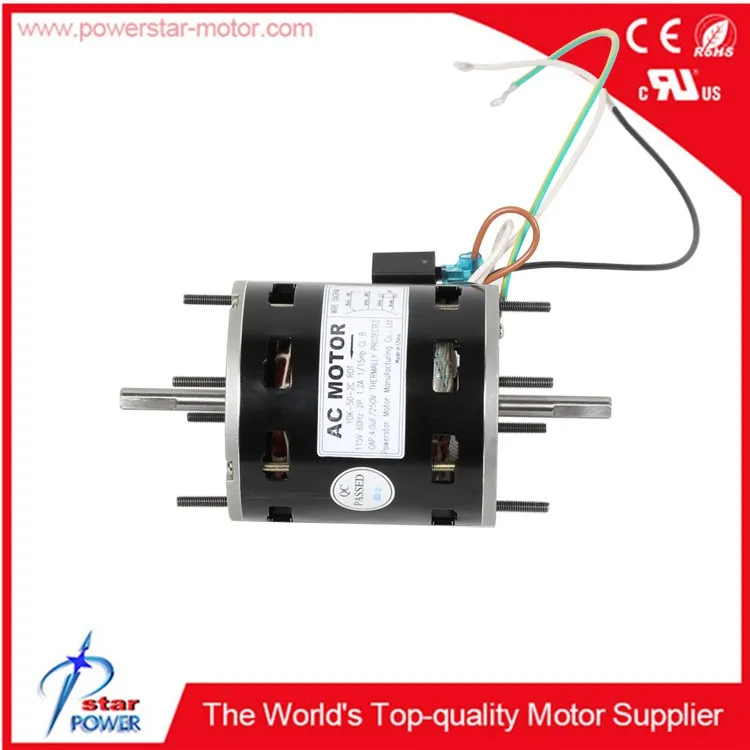

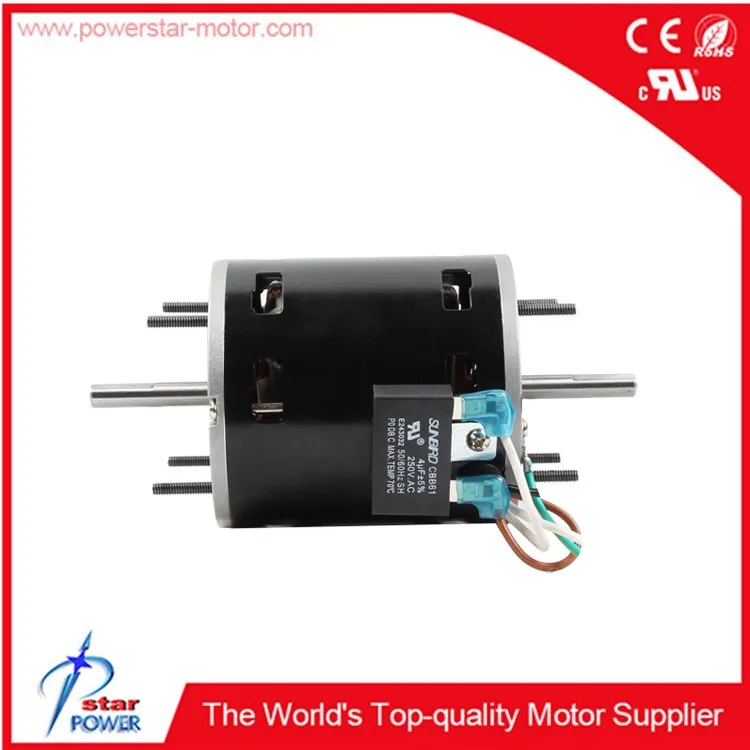

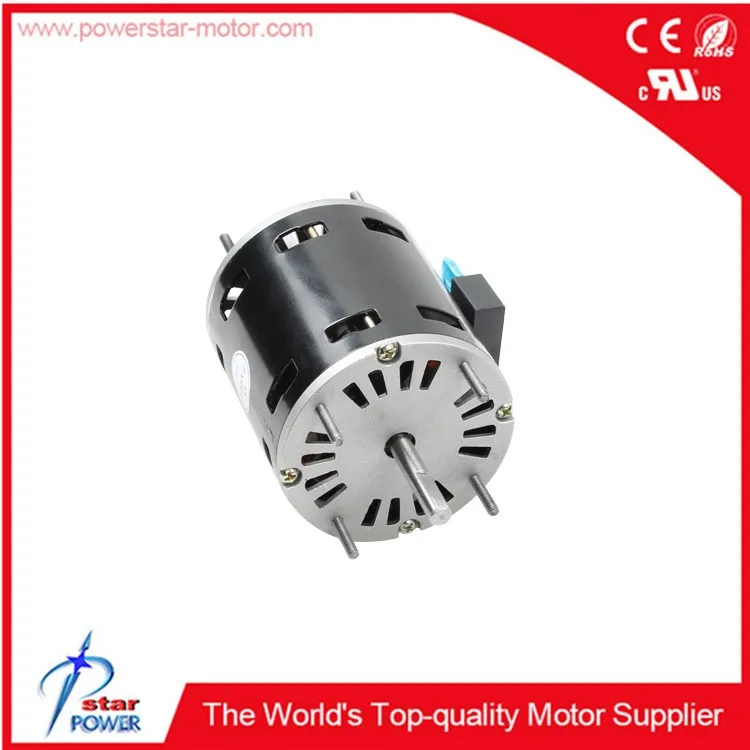

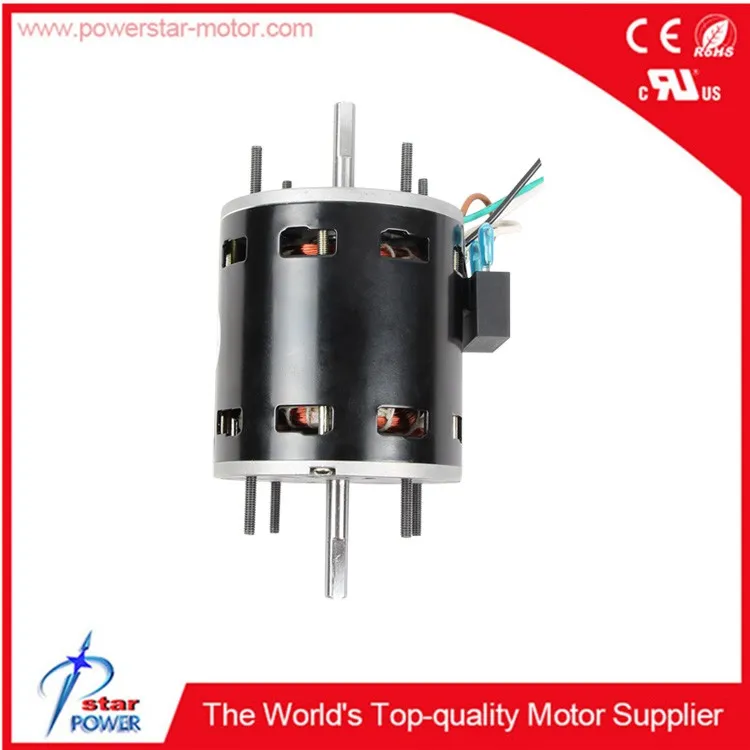

double shaft 120V 1/15hp AC 3.3 inch motor

FOB Reference Price:Get Latest Price
US $8-15 / Piece | 250 Piece/Pieces (Min. Order)
Supply Ability:
2000 Piece/Pieces per Day
Port:
Zhongshan
Report Suspicious Activity
Overview
Quick Details
Brand Name:
powerstar
Model Number:
YDK-50-2C
Type:
Asynchronous Motor
Frequency:
50/60Hz
Output Power:
1/15HP
Protect Feature:
semi-enclosed
Phase:
Single-phase
Certification:
CCC, CE, ROHS
AC Voltage:
110-120V
Place of Origin:
Guangdong, China (Mainland)
Efficiency:
IE 4
shaft diameter:
8mm
insulation:
H
wire:
100% copper
Pole:
2 pole
bearing:
ball
Rotation:
reversible
speed:
3300RPM
Ambient Temp.:
-10-43 degree
usage:
beer pump machine/ fan machine
Body DIA:
3.3 inch
Packaging & Delivery
Packaging Details
carton with plastic bag, foam panel, paper box, export carton.
Delivery Time
15-20days for sample, 20-30days for mass production

  double shaft 120V 1/15hp AC 3.3 inch motor



Product Description






ModelPower(HP)Voltage(V)Frequency(Hz)PoleSpeed(RPM)RotationShaftBearingDIAProtect FeatureInsulation Class
YDK-250-21/3115/208-230V50/6023300reversible8/10/12.7X80ball3.3"enclosedF
YDK-180-21/4115/208-230V50/6023300reversible8/10/12.7X80ball3.3"enclosedF
YDK-150-21/5115/208-230V50/6023300reversible8/10/12.7X80ball3.3"enclosedF
YDK-120-21/6115/208-230V50/6023300reversible8*80ball3.3"enclosedF
YDK-90-21/8115/208-230V50/6023300reversible8*80ball3.3"enclosedF
YDK-80-21/9115/208-230V50/6023300reversible8*80ball3.3"enclosedF
YDK-75-21/10115/208-230V6023300reversible8*80ball3.3"enclosedF
YDK-60-21/12115/208-230V6023300reversible8*80ball3.3"enclosedF
YDK-53-21/14115/208-230V6023300reversible8*80ball3.3"enclosedF
YDK-50-21/15115/208-230V6023300reversible8*80ball3.3"openF
YDK-45-21/16115/208-230V6023300reversible8*80ball3.3"openF
YDK-40-21/18115/208-230V6023300reversible8*80ball3.3"openF
YDK-37-21/20115/208-230V6023300reversible8*80ball3.3"openF
YDK-35-21/22115/208-230V6023300reversible8*80ball3.3"openF
YDK-30-21/25115/208-230V6023300reversible8*80ball3.3"openF
YDK-25-21/30115/208-230V6023300reversible8*80ball3.3"openF
YDK-22-21/33115/208-230V6023300reversible8*80ball3.3"openF
YDK-18-21/40115/208-230V6023300reversible8*80ball3.3"openF
YDK-90-41/8115/208-230V6041550reversible8*80ball3.3"enclosedF
YDK-60-41/12115/208-230V6041550reversible8*80ball3.3"enclosedF
YDK-50-41/15115/208-230V6041550reversible8*80ball3.3"openF
YDK-37-41/20115/208-230V6041550reversible8*80ball3.3"openF
YDK-30-41/25115/208-230V6041550reversible8*80ball3.3"openF
YDK-25-41/30115/208-230V6041550reversible8*80ball3.3"openF
YDK-22-41/33115/208-230V6041550reversible8*80ball3.3"openF
YDK-21-41/35115/208-230V6041550reversible8*80ball3.3"openF
YDK-18-41/40115/208-230V6041550reversible8*80ball3.3"enclosedF
YDK-15-41/50115/208-230V6041550reversible8*80ball3.3"openF
YDK-12-41/60115/208-230V6041550reversible8*80ball3.3"openF
YDK-11-41/65115/208-230V6041550reversible8*80ball3.3"openF









hot



Company Information

Zhongshan Powerstar Motor Manufacturing Co.,Ltd. is a professional motor;manufacturer with 15 years

experience of designing and producing.



The main products are AC Induction gear motorFan MotorAir conditioner motorHousehold appliance 3.3 inches motorAir mover motorAir cooler motorPump MotorRoad barrier motorAir inflatable blower motor



We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Europe, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.
